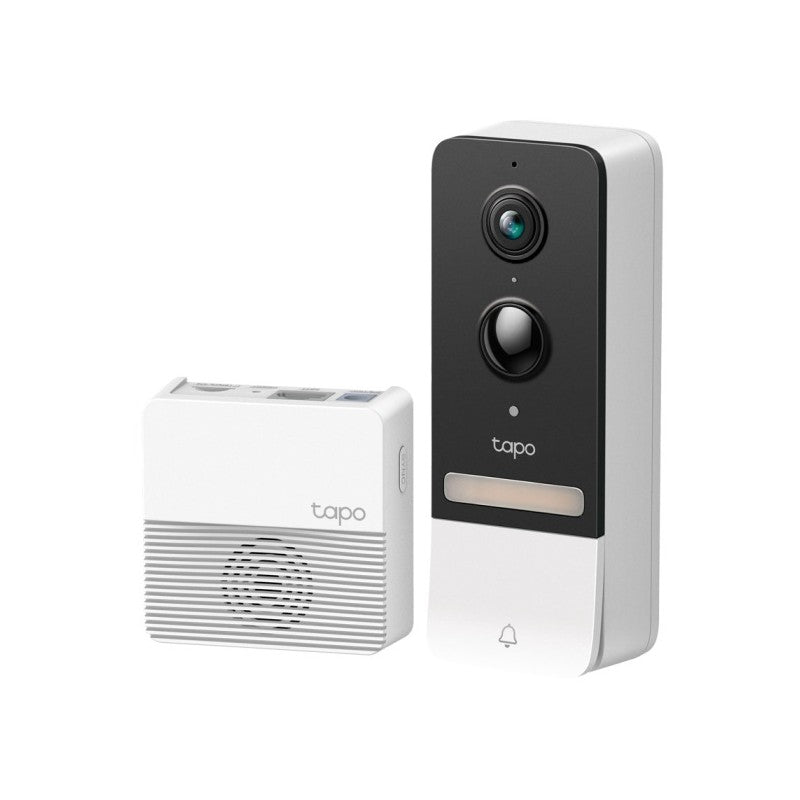

TP-Link D230S1 Tapo Smart Battery Video Doorbell

SPECIFICATIONS

2K 5MP Live View: Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.

Color Night Vision: With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and color at night.

Head-to-Toe View: With the camera’s ultra-wide FOV(160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m, which shows more vertical details than other 16:9 doorbells'.

Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.

Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.

Smart AI Detection and Notification: Smart AI algorithms identify people and cars, and notify users as needed.

Multiple Ways to Answer: With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.

Flexible Storage Choice: Save recorded videos on the hub-installed microSD card (up to 512 GB) or by using Tapo Care cloud storage services.

Anti-theft Alarm: Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.

Water & Dust Resistant IP64：Operates well on rainy days and in damp environments.

CAMERA

Image Sensor: 1/2.7"

Lens F/NO: 2.1

Night Vision: 850 nm IR LED up to 25 ft

Weatherproof Rating: IP64

Viewing Angle: 160° Diagonal

Resolution: 2K 5MP (2560 × 1920px)

VIDEO

Frame Rate: 15 fps

Video Streaming: 2K 5MP

Audio Compression: G.711

Video Compression: H.264

AUDIO

Audio Communication: 2-way audio

Audio Input & Output: Built-in microphone and speaker

NETWORK

Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP

Wireless Security: WPA/WPA2-PSK

Standards and Protocols: IEEE 802.11b/g/n, 2.4 GHz

Security: 128 bit AES encryption with SSL/TLS

Frequency: 2.4 GHz

ACTIVITY NOTIFICATIONS

Input Trigger: Motion detection, Package Detection, Person detection, Pet detection, Vehicle detection.

Output Notification: Notification, Snapshot(Tapo Care),Clips(Tapo Care).

ENVIRONMENT

Operating Temperature: -20℃~45℃(-4°F ~113 °F )

Storage Temperature: -20℃~45℃(-4°F ~113 °F )

Operating Humidity: 10%~90%RH, Non-condensing

Storage Humidity: 5%~90%RH, Non-condensing

WARRANTY

1 Year Walk in warranty with print out receipt to TP-Link Authorized Service Centre Ban Leong Technologies Limited.
